OVERVIEW

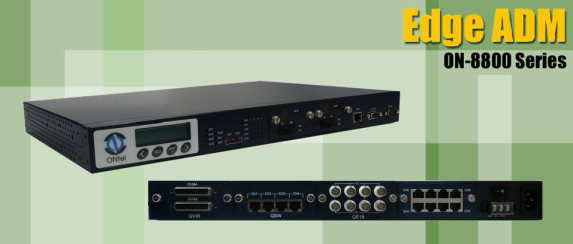

The Ontel ON-8800 Edge ADM is an ideal space-saving, multi - service cross-connect platform for the migration to multiservice networks and designed to meet low or medium capacity bandwidth service demands in access layer applications.
The Ontel ON-8800 Edge ADM integrates carrier-grade, next-generation SDH functionality and TDM aggregation with advanced, Layer 2 packet-switching features. These features allow service providers to support new broadband services, such as Ethernet Services (E-Line, E-LAN * ), and 3G mobile services, as well as transport-oriented services such as TDM private lines, over a single aggregation multiservice platform.
The Ontel ON-8800 can be configured as a Terminal Multiplexer (TM) or Add/Drop Multiplexer (ADM) with 32xE1, 4xV.35, 4x10/100 Mbps Ethernet or 2xGbE tributary interfaces in any slot and 2 hot-swappable trunk interfaces at STM-1 rate. The Ontel ON-8800 is capable of aggregating Ethernet traffic from 8 remote nodes in a ring in either EoS mode or EoPDH * mode into the central office node to provide Ethernet private LAN over a WAN.
Due to the ultra compact mechanical design (1U height), The Ontel ON-8800 Edge ADM can be easily integrated into other service nodes, such as 2G / 3G mobile base stations, DSLAM, DLC or voice access remote node, etc., to provide a total solution and significantly reduces deployment cost.
|
KEY FEATURES
ON-8 8 00 provides multiple service solutions with standard STM1 interface s (SDH TM & ADM) .
Multiple hot-swappable tributary service s in any slot :
* 4-channels E1 card (QE1R/B)
* 8-channels E1 card (8E1)
* 4-ports Ethernet switch over SDH interface card (QSW)
* 2 -ports GbE Ethernet aggregation interface card (EoSa)*
* 4-ports V.35 Data communication Interface card (QV35)
4 slots to support combinations of traffics in a 1U-height box
Ethernet traffic is encapsulated and transported over SDH /nxE1 using Generic Framing Procedure (GFP) & Virtual Concatenation (VCAT) with LCAS*
Hot swappable fiber optical cards with optional 1+1 automatic protection switching (APS) for optical link s .
Automatic Laser Shutdown (ALS) based on ITU-T G.958/G.664 .
Data Communication Channel for remote control and online remote upgrade.
Various network management interfaces: RS-232/ Ethernet/ LCD
Redundant AC/DC power provided, DC power could be used for battery backup.
NxN cross connect for TDM traffic (E1 & V.35)
Various framing selections for V35 to E1 traffic
EMS tool for ON-8800 series (GMS)*
|
