FRM220-1000EAS

FRM220-1000EAS -  Converter quang tốc độ 1000Mbs

tương thích chuẩn IEEE802.3ah

Gigabit Ethernet OAM/IP In-band Converter/ Switch

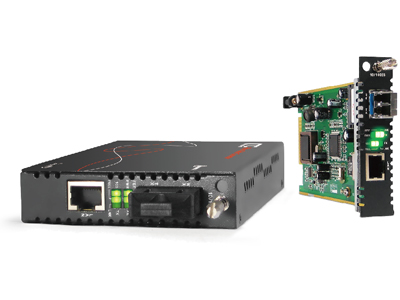

The FRM220-1000EAS is an IEEE802.3ah OAM compliant dual copper to dual fiber Gigabit Ethernet solution designed to make conversion between 10/100/1000Base-TX and 1000Base-SX/LX with SFP connector. With SNMP and Web-based management in the FRM220, the network administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter.

．Supports local / remote 802.3ah OAM / IP In-band management
．Stand-alone IP Based, Web GUI, Telnet, SNMP management
．10/100/1000Base-T to 1000Base-SX/LX SFP
．Auto-Negotiation or forced mode
．Auto MDI/MDIX
．Forward 1632 bytes (max.) packets
．Supports Q in Q double tagged frame transparent
．Supports IEEE 802.1q Tag based VLAN
．Supports Flow control (Pause)
．Supports OAM remote loopback to assist in diagnosing network Poblems
．Supports bandwidth control
．Supports remote CPE power fail detect (dying gasp)
．Supports Far End Fault
．Supports Link Fault Pass through (LFP)
．Supports Loop Back Test
．Supports RMON counter
．D/D function for supported SFP fiber transceiver
．Auto Laser Shutdown (ALS)
．Fiber Hardware Reset (FHR)
